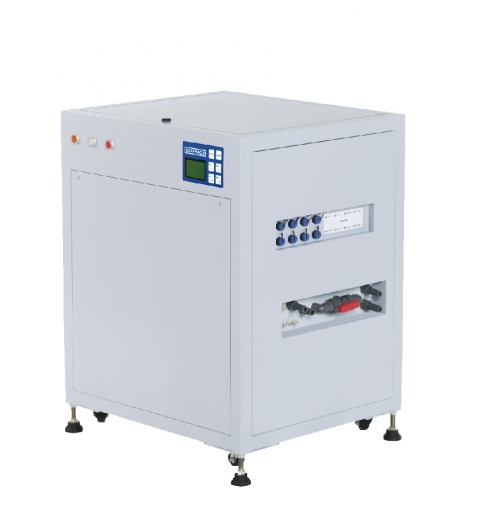

WDT Wasted Developer Processor
Seperating wasted developer into 80% of legally disposable water and 20% of condensed wasted checmical.
Low pressure vaporizing method applicable to wasted thermal CTP plate developer; treated water can be disposed legally and directly. Low electricity consumption, safe, reducing wasted developer treatment cost. It's a small machine that's suitable for small scale wasted developer treatment.
‧ 1kw operating electricity needed, heat circulation design.
‧ Low running cost, low frequescy for consumables change.
‧ Vacume vaporizing, treated water can be legally disposed.
‧ Low temperature treatment, safe to operate.
‧ A small size machine that does not take up a lot of space.
‧ 1kw operating electricity needed, heat circulation design.
‧ Low running cost, low frequescy for consumables change.
‧ Vacume vaporizing, treated water can be legally disposed.
‧ Low temperature treatment, safe to operate.
‧ A small size machine that does not take up a lot of space.
| Model | W-WDT-400 | W-WDT-600 |
| Applicaple | CTP Plate Used Developer | |
| Water Regeneration | 2.1 L / HR (max.) | 3.5 L / HR (max.) |
| Reduction Ratio | 80% | |
| Weight | 110 Kg | 130 Kg |
| Power Spec. | Single phase、220V AC 50 / 60 Hz 5A | |
| Dimension | 800 x 700 x 1050 mm | 800 x 700 x 1200 mm |
| Operational Temp. | 15 ~ 30°C | |
