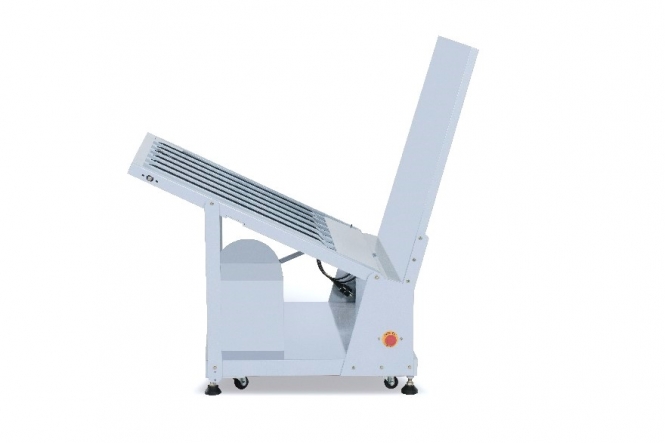

SBZ Plate Stacker

Automatic stacker that suits GRAFMAC plate processor perfectly.

Auto plate stacking function preventing scratches on the plate, reducing the need for human labor.
Realizing continous and highly efficient plate making process.
‧ Durable rubber belt for long term usage.
‧ Anti-slip off design, no maintainance.
‧ Two-section plate transferring drive to satisfy continous plate processing needs.

Model	W-SBZ-32		W-SBZ-45	W-SBZ-48	W-SBZ-58	W-SBZ-64
MAX. Length	1030 / 800 mm		900 mm	1100 mm	1620 mm	1240 mm
MAX.Width	800 / 1030mm		1100 mm	1200 mm	1260 mm	1630 mm
Stacking Capacity	50 pcs
Staking Speed	0 ~ 170 mm/s
Weight	100 kg		110 kg	120 kg	150 kg	165 kg
Diminsion	Width	1080 mm	1250 mm	1280 mm	1260 mm	1740 mm
	Depth	1660 mm	1220 mm	1660 mm	2450 mm	1860 mm
	Height	1370 mm	1260 mm	1370 mm	1900 mm	1640 mm
Power Spec.	Single phase、220~240 V、50/60Hz、5A
