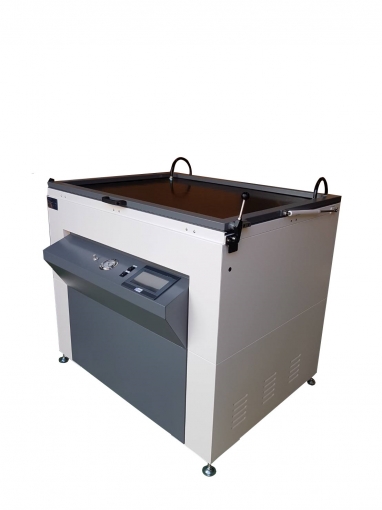

SP-L

This model is equipped with Japan manufactured ultra violet lamp and fresnel lens.  Automatica vacuum suction and precise exposure volume control. Applicable to fine silkscreen production .
‧80% plus even-light distribution.
‧High stretch rubber blanket.
‧AEXC-II accumulated light exposure value controller.
‧High density fresnel lenses.
‧high functioning transformer.
‧Cylinder type vacuum pump.

Model	W-SP-3648L	W-SP-4860L	W-SP-6666L	W-SP-7272L	W-CP-3143LS
Max Frame Size	65 x 90 cm	95 x 120 cm	130 x 130 cm	150 x 150 cm
Film Size	75 x 100 cm	105 x 130 cm	140 x 140 cm	160 x 160 cm	75 x 100 cm
Standard Source of Lighting	3KW Instant Lighting
Locum	1/4HP Soundless Voccum System
Power Supply	One Way, 220V, 50/60Hz, 25A
Dimension (cm)	105 x 130 x 120	135 x 160 x 130	182 x 176 x 146	197 x 192 x 156	105 x 130 x 120
Net Weight (kg)	180	220	350	480	180



Model	W-SP-3648LF	W-SP-4860LF	W-SP-6666LF	W-SP-7272LF
Max Frame Size	65 x 90 cm	95 x 120 cm	130 x 130 cm	150 x 150 cm
Film Size	75 x 100 cm	105 x 130 cm	140 x 140 cm	160 x 160 cm
Parallel Exposure Area	75.5 x 106 cm	93 x 137 cm
Standard Source of Lighting	3KW Instant Lighting
Vacuum	1/4HP Soundless Voccum System
Power Supply	One Way, 220V, 50/60Hz, 25A
Dimension (cm)	105 x 130 x 120	135 x 160 x 130	182 x 176 x 146	197 x 192 x 156
Net Weight (kg)	180	220	350	480
